# Smart之自定HTTP Server伺服器

  • 文件號:S-EQ-DEM-2029

# 1. 說明

  採用HTTP協議,建立數據伺服器,通過訪問對應的API進行數據操作。該示例需與Smart之HTTP Client客戶端配合使用。

  範例使用的是類rest風格的請求方式,rest api 是前後端分離最佳實踐,是開發的一套標準或者說是一套規範。其優點如下:

  1. 輕量,直接通過http,不需要額外的協議,通常有post/get/put/delete操作。
  2. 面向資源,一目瞭然,具有自解釋性。
  3. 數據描述簡單,一般通過json或者xml做數據通訊。

  在使用該範例之前,請先在資料庫Smart中找到一個Table_Test表,建立語句的示例如下:

--建立數據表 Table_Test
Create Table Table_Test(
FCode nvarchar(50) not null,
FName nvarchar(100)
)
GO
--建立表主索引 PK_Table_Test
CREATE UNIQUE NONCLUSTERED INDEX [PK_Table_Test] ON [dbo].[Table_Test]
([FCode] ASC)
WITH (PAD_INDEX  = OFF,
STATISTICS_NORECOMPUTE  = OFF,
SORT_IN_TEMPDB = OFF,
IGNORE_DUP_KEY = OFF,
DROP_EXISTING = OFF,
ONLINE = OFF,
ALLOW_ROW_LOCKS  = ON,
ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY]
GO

--插入測試用的數據
INSERT INTO Table_Test(FCode,FName)
VALUES('0101','小明')

INSERT INTO Table_Test(FCode,FName)
VALUES('0102','小王')
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

  在TARS中建立該資料庫的連線設定,使Smart能夠連線到該資料庫。TARS帳套配置請參閱TARS使用手冊。

  通過Smart智慧控制平臺功能表[工具]->[帳套設定],設定好要連線的TARS中介軟體之資料庫,在使用過程中須保證TARS處於運行狀態並開放服務。

  通過本範例學習,您可以掌握Smart智慧控制平臺作為HTTP伺服器的功能。

# 2. 設計明細

  開啟Smart智慧控制平臺,分別加入下插圖之控制元件。或者通過點選功能表欄[檔案]-[打開專案]選擇範例專案檔案來打開該範例。

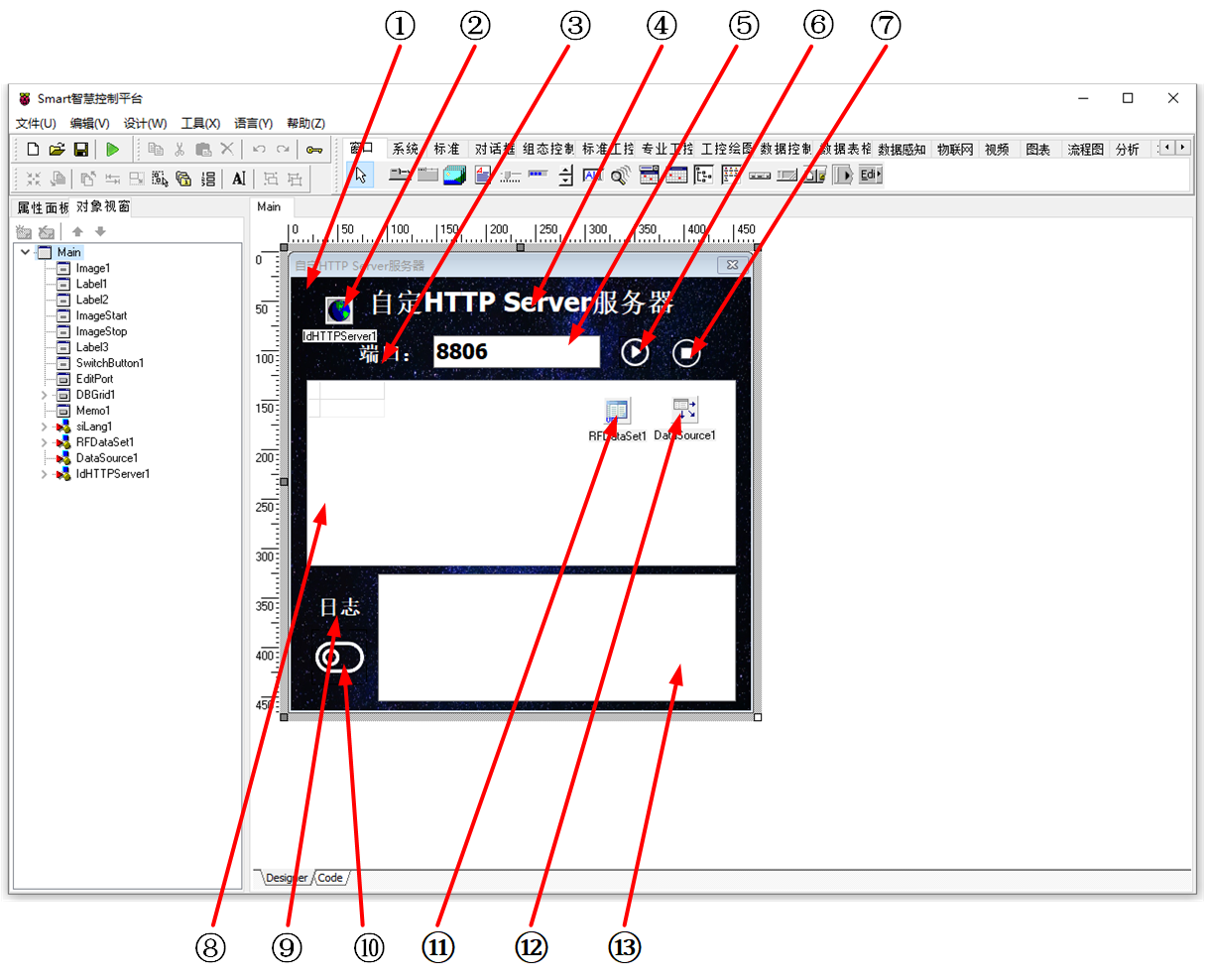

自定HTTP Server伺服器 UI佈局

  ①:TImage元件,控制元件名稱為Image1。

  ②:TIdHTTPServer元件,控制元件名稱為IdHTTPServer1。

  ③:TLabel元件,控制元件名稱為Label2。

  ④:TLabel元件,控制元件名稱為Label1。

  ⑤:TEdit元件,控制元件名稱為EditPort。

  ⑥:TImage元件,控制元件名稱為ImageStart。

  ⑦:TImage元件,控制元件名稱為ImageStop。

  ⑧:TDBGrid元件,控制元件名稱為DBGrid1。

  ⑨:TLabel元件,控制元件名稱為Label3。

  ⑩:TSwitchButton元件,控制元件名稱為SwitchButton1。

  (11):TRFDataSet元件,控制元件名稱為RFDataSet1。

  (12):TDataSource元件,控制元件名稱為DataSource1。

  (13):TMemo元件,控制元件名稱為Memo1。

  • Main窗體屬性設定

    • BorderStyle:設定邊界樣式=bsDialog。
    • Caption:設定窗體顯示的標題=自定HTTP Server伺服器。
    • ClientHeight:設定客戶區窗體的高度=438。
    • ClientWidth:設定窗體客戶區的寬度=465。
  • ①Image1屬性設定

    • Align:設定控制元件對齊方式=alClient。
    • Stretch:設定圖片拉伸適應于控制元件。

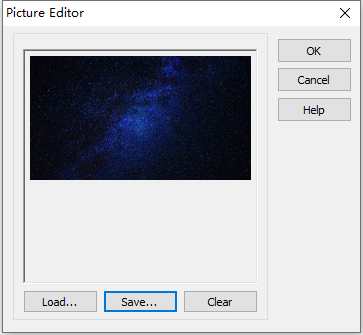

    • Picture:設定圖片。點選Picture屬性右側的[...]按鈕,打開檔案上傳界面,點選[Load...]從檔案瀏覽器中選擇對應的圖片檔案上傳,返回該界面下,待顯示出圖片後點擊[OK]載入圖片。
  • ③Label2屬性設定

    • Caption:設定標籤內容=埠:。

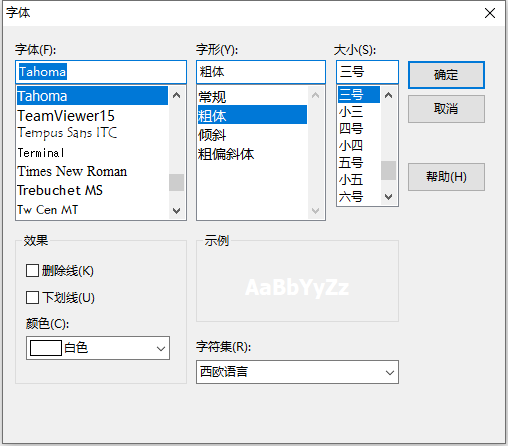

    • Font:設定字型,雙擊該屬性或者點選屬性右側的[...]以打開字型設定界面。
  • ④Label1屬性設定

    • Caption:設定標籤內容=自定HTTP Server伺服器。

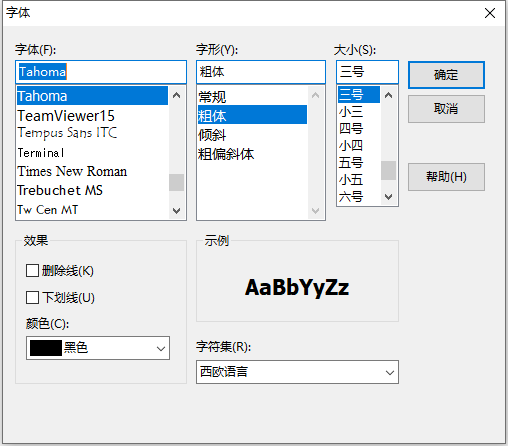

    • Font:設定字型,雙擊該屬性或者點選屬性右側的[...]以打開字型設定界面。
  • ⑤EditPort屬性設定

    • Name:設定控制元件名稱=EditPort。
    • NumbersOnly:只輸允許輸入數字,設定為True。
    • Text:設定文字內容=8806。

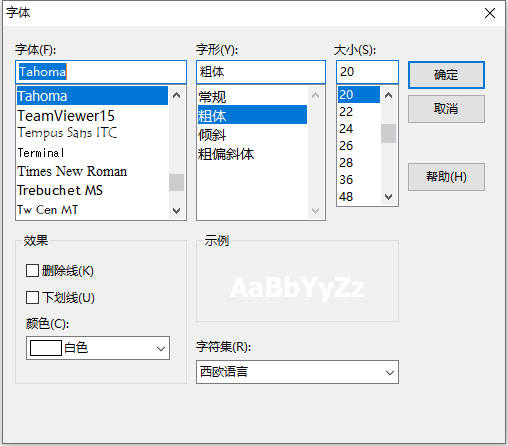

    • Font:設定字型,雙擊該屬性或者點選屬性右側的[...]以打開字型設定界面。
  • ⑥ImageStart屬性設定

    • Height:設定控制元件高度=32。
    • Width:設定控制元件寬度=32。
    • Stretch:設定圖片拉伸=True。
    • Name:設定控制元件名稱為ImageStart。
    • Picture:設定圖片。點選Picture屬性右側的[...]按鈕,打開檔案上傳界面,點選[Load...]從檔案瀏覽器中選擇對應的圖片檔案上傳,返回該界面下,待顯示出圖片後點擊[OK]載入圖片。
  • ⑦ImageStop屬性設定

    • Height:設定控制元件高度=32。
    • Width:設定控制元件寬度=32。
    • Stretch:設定圖片拉伸=True。
    • Name:設定控制元件名稱為ImageStop。
    • Picture:設定圖片。點選Picture屬性右側的[...]按鈕,打開檔案上傳界面,點選[Load...]從檔案瀏覽器中選擇對應的圖片檔案上傳,返回該界面下,待顯示出圖片後點擊[OK]載入圖片。
  • ⑧DBGrid1屬性設定

    • DataSource:設定數據源=DataSource1。
  • ⑨Label3屬性設定

    • Caption:設定標籤內容=日誌。
    • Font:設定字型,雙擊該屬性或者點選屬性右側的[...]以打開字型設定界面。
  • ⑩SwitchButton1屬性設定

    • Height:設定控制元件高度=56。
    • Width:設定控制元件寬度=56。
    • Stretch:設定圖片拉伸=True。
    • SwitchOff:設定處於關閉狀態時顯示的圖片。點選屬性右側的[...]按鈕,打開檔案上傳界面,點選[Load...]從檔案瀏覽器中選擇對應的圖片檔案上傳,返回該界面下,待顯示出圖片後點擊[OK]載入圖片。
    • SwitchOn:設定處於開啟狀態時顯示的圖片。點選屬性右側的[...]按鈕,打開檔案上傳界面,點選[Load...]從檔案瀏覽器中選擇對應的圖片檔案上傳,返回該界面下,待顯示出圖片後點擊[OK]載入圖片。
  • (12)DataSource1屬性設定

    • DataSet:設定繫結的數據集=RFDataSet1。

# 3. 程式設定

# 3.1. 程式初始化設定

  程式啟動時,數據集控制元件修改爲帳套設定。

constructor TMyHandler.Create(AOwner: TComponent);
begin
  FThis :=TBaseForm(AOwner);
  FThis.RFDataSet1.Connection := DM.DBConnection;
end;
1
2
3
4
5

# 3.2. 事件設定

  • ⑩SwitchButton1-OnSwitch事件

  點選切換資訊欄位的顯示與關閉。

procedure TMyHandler.SwitchButton1Switch;
//顯示日誌
begin
  FThis.Memo1.Visible := FThis.SwitchButton1.IsChecked;
end;
1
2
3
4
5
  • ②IdHTTPServer-OnCommandGet事件

  當伺服器接收到請求時,根據發送的命令進行相應的結果輸出。

procedure TMyHandler.IdHTTPServer1CommandGet;
//當伺服器接收到請求命令時觸發,根據發送的命令請求進行相應的結果輸出
var
  ReportType:String;
  APathInfo,SQL:string;
  str:String;
  export_path,filename:string;
  Stream: TStringStream;
begin
  Stream := TStringStream.Create;
  export_path:='Samples';
  if ARequestInfo.Command.ToLower = ('Get').ToLower then
  begin
    APathInfo := ARequestInfo.Document;
    if APathInfo = '' then
      Exit;
    //Request.Host

    //  get地址
    //  http://localhost:12345/counter.jsp?name=zhangsan=123
    //
    //  ARequestInfo.Document 是
    //  /counter.jsp

    filename := ARequestInfo.Document;
    FThis.Memo1.Lines.Insert(0, FormatDateTime('HH:NN:SS.ZZZ ', now) + filename);
    //    if log_path[length(log_path)]<>'\' then log_path := log_path+'\';
    //    if report_path[length(report_path)]<>'\' then report_path := report_path+'\';
    //    if export_path[length(export_path)]<>'\' then export_path := export_path+'\';

    //獲取產生的pdf檔案
    //export_path+filename;
    //設定輸出檔案的編碼型別,避免亂碼
    if  FileExists(export_path + filename) then
    begin
      //AResponseInfo.ContentType := 'text/html;charset=GB2312'; //解決 Response 返回中文亂碼問題
      //form1.Memo1.Lines.Add(ExtractFileExt(filename));
      //form1.Memo1.Lines.Add(Copy(ExtractFileExt(filename),2,ExtractFileExt(filename).Length));
      if ExtractFileExt(filename).ToLower = '.pdf' then
        AResponseInfo.ContentType := 'application/pdf;charset=GB2312' //解決 Response 返回中文亂碼問題

      else if ExtractFileExt(filename).ToLower = '.jpg' then
        AResponseInfo.ContentType := 'application/x-jpg;charset=GB2312' //解決 Response 返回中文亂碼問題

      else if ExtractFileExt(filename).ToLower = '.xls' then
        AResponseInfo.ContentType := 'application/x-xls;charset=GB2312' //解決 Response 返回中文亂碼問題

      else if ExtractFileExt(filename).ToLower = '.txt' then
        AResponseInfo.ContentType := 'text/plain;charset=GB2312' //解決 Response 返回中文亂碼問題

      else if ExtractFileExt(filename).ToLower = '.html' then
        AResponseInfo.ContentType := 'text/html;charset=GB2312' //解決 Response 返回中文亂碼問題

      else if ExtractFileExt(filename).ToLower = '.rtf' then
        AResponseInfo.ContentType := 'application/x-rtf;charset=GB2312' //解決 Response 返回中文亂碼問題

      else if ExtractFileExt(filename).ToLower = '.csv' then
        AResponseInfo.ContentType := 'text/csv;charset=GB2312' //解決 Response 返回中文亂碼問題

      else
        AResponseInfo.ContentType := 'application/octet-stream;charset=GB2312'; //解決 Response 返回中文亂碼問題

      //      //AResponseInfo.ContentType := 'application/pdf;charset=GB2312'; //解決 Response 返回中文亂碼問題
      //      //AResponseInfo.ContentType := 'application/'+Copy(ExtractFileExt(filename),2,ExtractFileExt(filename).Length)+';charset=GB2312'; //解決 Response 返回中文亂碼問題
      //      //AResponseInfo.SetCustomHeader('Access-Control-Allow-Origin', '*');     // 允許跨域訪問
      //      //AResponseInfo.CustomHeaders.AddValue('Access-Control-Allow-Origin', '*');    // 允許跨域訪問
      //      //AResponseInfo.CustomHeaders.Add('Access-Control-Allow-Origin:*');           // 允許跨域訪問
      //      //Response.ContentType := 'text/html';

      AResponseInfo.CustomHeaders.Add('Access-Control-Allow-Origin:*');
      AResponseInfo.CustomHeaders.Add('Access-Control-Allow-Headers:*');
      AResponseInfo.CustomHeaders.Add('Access-Control-Allow-Method:*');

      AResponseInfo.ContentStream := TFileStream.Create(export_path + filename, $0000 + $0020);
      AResponseInfo.WriteContent;
      //AResponseInfo.Server:='IIS/6.0';
      //AResponseInfo..CacheControl:='no-cache';
      //AResponseInfo.Pragma:='no-cache';
      //AResponseInfo.Date:=Now;
    end
    else
    begin
      AResponseInfo.ContentType := 'application/octet-stream;charset=GB2312'; //解決 AResponseInfo 返回中文亂碼問題
      AResponseInfo.CustomHeaders.Add('Access-Control-Allow-Origin:*');           // 允許跨域訪問
      AResponseInfo.ContentText := '404';
      AResponseInfo.WriteContent;
    end;
  end;

  if ARequestInfo.Command.ToLower = ('POST').ToLower then
  begin
    AResponseInfo.CustomHeaders.Add('Access-Control-Allow-Origin:*');
    AResponseInfo.CustomHeaders.Add('Access-Control-Allow-Headers:*');
    AResponseInfo.CustomHeaders.Add('Access-Control-Allow-Method:*');

    APathInfo := ARequestInfo.Document;
    //請求路徑中包含/opensql則將執行SQL查詢功能
    if APathInfo = '/opensql' then
    begin
       Stream.LoadFromStream(ARequestInfo.PostStream);
       SQL := Stream.DataString;
       if SQL='' then
       begin
        str := ('{"status":"error","data":' + FThis.siLang1.GetTextW('"SQL內容不能為空!"') + '}');
        FThis.Memo1.Lines.Insert(0, FormatDateTime('HH:NN:SS.ZZZ ', now) + FThis.siLang1.GetTextW('SQL內容不能為空!'));
        AResponseInfo.ContentText := paxfunc.URLEncode(str);
        AResponseInfo.WriteContent;
        Exit;
       end;

       FThis.RFDataSet1.Open(SQL);
       FThis.Memo1.Lines.Insert(0, FormatDateTime('HH:NN:SS.ZZZ ', now) + FThis.siLang1.GetTextW('接收到的SQL內容:') +SQL);
       //返回查詢的數據集結果
       str := ('{"status":"ok", ' + dm.DataSetToJSON(FThis.RFDataSet1) + '}');
       AResponseInfo.ContentText := paxfunc.URLEncode(str);
       AResponseInfo.WriteContent;
    end;
  end;
  Stream.Free;
end;
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
  • ⑥ImageStart-OnClick事件

  點選以開啟服務。

procedure TMyHandler.ImageStartClick;
//開啟服務
begin
  if not FThis.IdHTTPServer1.Active then
  begin
    try
      FThis.IdHTTPServer1.Bindings.Clear;
      FThis.IdHTTPServer1.DefaultPort := StrToInt(FThis.EditPort.Text);
      FThis.IdHTTPServer1.Active := True;
      FThis.Memo1.Lines.Insert(0, FormatDateTime('HH:NN:SS.ZZZ ', now) + 'HTTP服務 已啟動。')
    except
      FThis.Memo1.Lines.Insert(0, FormatDateTime('HH:NN:SS.ZZZ ', now) + 'HTTP服務 啟動失敗。')
    end;
  end;
end;
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
  • ⑦ImageStop-OnClick事件

  點選以關閉服務

procedure TMyHandler.ImageStopClick;
//停止服務
begin
 FThis.IdHTTPServer1.Active := False;
  FThis.IdHTTPServer1.Bindings.Clear;
  FThis.Memo1.Lines.Insert(0, FormatDateTime('HH:NN:SS.ZZZ ', now) + 'HTTP服務 已停止。');
end;
1
2
3
4
5
6
7

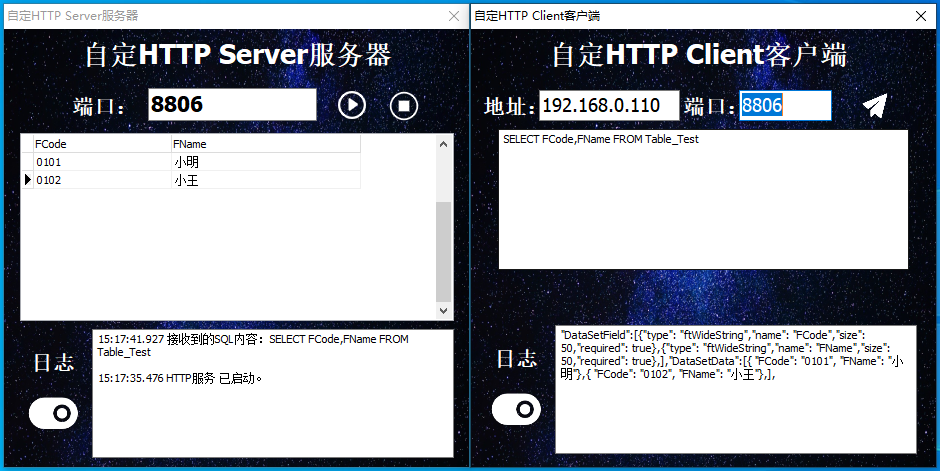

# 4. 運行結果

  通過工具欄儲存,將程式儲存為 sdb 專案檔案。

  使用滑鼠點選工具欄運行(Run),測試運行結果。在伺服器端設定埠號,點選啟動按鈕,下方顯示HTTP服務 已啟動。在客戶端處填寫伺服器的地址埠號資訊,填寫查詢的SQL內容,點選右側的發送按鈕,下方日誌處會接收到查詢的結果集。服務端的數據表格也會顯示查詢的結果。

簡訊發送
自定HTTP Client客戶端

← 簡訊發送 自定HTTP Client客戶端→

Copyright © 2021-2025 愛招飛IsoFace | ALL Rights Reserved
  • 跟随系统
  • 浅色模式
  • 深色模式
  • 阅读模式
