# FastWeb之汽車3D展示-視覺化控制元件
# 1. 說明
js-cloudimage-360view是一個簡單且互動性強的庫，可用於虛擬展示產品的相關功能。其原理是通過圖片序列的排序，在界面中以幻燈片的方式展示，點選不同的視角呈現不同的圖片頁面。以下將以此為基礎實現的Ug3DView控制元件為例製作一個用於汽車展示的界面。
通過本範例學習，可以掌握在示例中引入3D展示的相關功能。
# 2. 設計明細

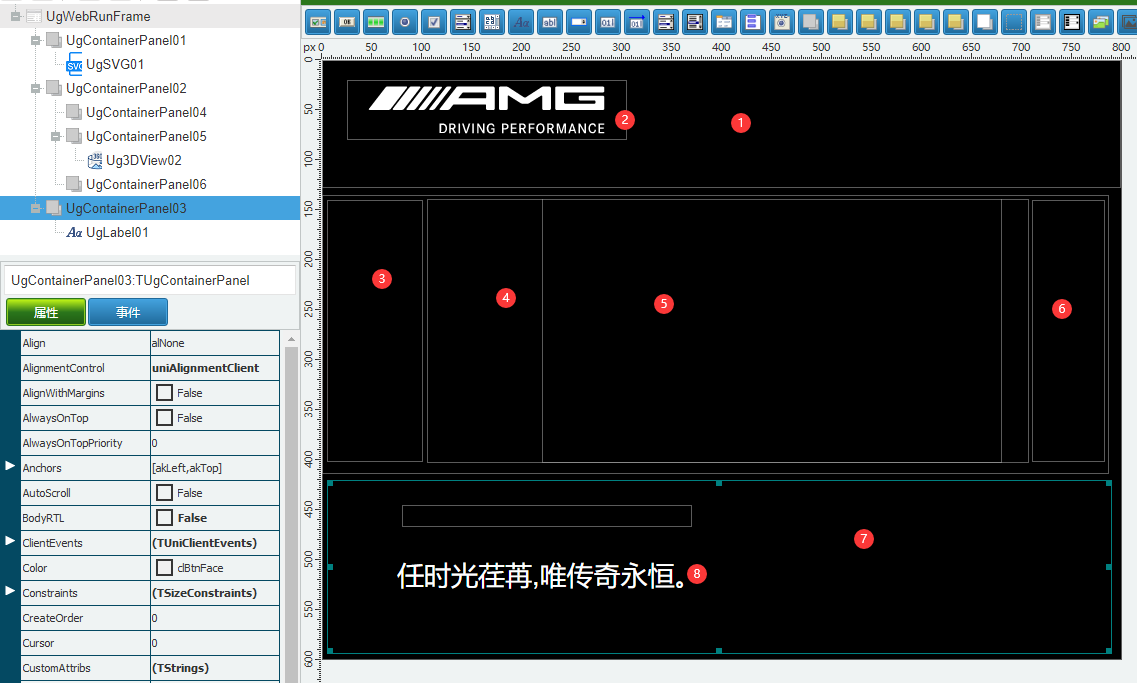

開啟FastWeb設計器，分別加入下插圖之控制元件。或者點選左上角的[匯入]選擇模板檔案來打開對應模板。
1：TUgContainerPanel元件，控制元件名稱為UgContainerPanel01。
2：TUgSVG元件，控制元件名稱為UgSVG01。
3：TUgContainerPanel元件，控制元件名稱為UgContainerPanel04。
4：TUgContainerPanel元件，控制元件名稱為UgContainerPanel05。
5：TUg3DView元件，控制元件名稱為Ug3DView02。
6：TUgContainerPanel元件，控制元件名稱為UgContainerPanel06。
7：TUgContainerPanel元件，控制元件名稱為UgContainerPanel03。
8：TUgLabel元件，控制元件名稱為UgLabel01。
UgWebRunFrame屬性設定
AlignmentControl：設定其下子控制元件的對齊模式，設定為uniAlignmentClient。Color：設定背景的顏色，設定為clBlack（黑色）。Height：設定頁面高度=600。Layout：設定其下子控制元件的佈局方式，設定為vbox。Width：設定頁面寬度=800。
1：UgContainerPanel01屬性設定
LayoutConfig：設定控制元件的佈局設定，其中的Flex設定為2，Width設定為100%。
2：UgSVG01屬性設定
HTML：設定內容的SVG文字。
<?xml version="1.0"encoding="UTF-8"standalone="no"?><!DOCTYPE svg PUBLIC"-//W3C//DTD SVG 1.1//EN""http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd"><svg width="100%"height="100%"viewBox="0 0 161 32"version="1.1"xmlns="http://www.w3.org/2000/svg"xmlns:xlink="http://www.w3.org/1999/xlink"xml:space="preserve"xmlns:serif="http://www.serif.com/"style="fill-rule:evenodd;clip-rule:evenodd;stroke-linejoin:round;stroke-miterlimit:1.41421;"><g id="Layer1"transform="matrix(1,0,0,1,5.01591,1.38639)"><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M85.325,3.85C85.325,3.576 85.099,3.35 84.825,3.35L76.565,3.35C76.291,3.35 76.065,3.576 76.065,3.85L76.065,4.56C76.064,4.836 76.289,5.065 76.565,5.07L81.765,5.07C82.115,5.07 82.095,5.22 82.095,5.63L82.095,5.72C82.095,6.12 82.095,6.21 81.765,6.21L71.175,6.21C70.901,6.21 70.675,5.984 70.675,5.71L70.675,2.64C70.675,2.366 70.901,2.14 71.175,2.14L84.815,2.14C85.089,2.14 85.315,1.914 85.315,1.64L85.315,0.51C85.315,0.236 85.089,0.01 84.815,0.01L68.035,0.01C67.761,0.01 67.535,0.236 67.535,0.51L67.535,8.01C67.535,8.284 67.761,8.51 68.035,8.51L84.815,8.51C85.089,8.51 85.315,8.284 85.315,8.01L85.315,3.76"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M58.315,5.91C58.124,6.075 57.886,6.177 57.635,6.2L55.505,6.2C55.254,6.177 55.016,6.075 54.825,5.91L50.725,3.32C50.678,3.28 50.617,3.258 50.555,3.258C50.411,3.258 50.293,3.376 50.293,3.52C50.293,3.53 50.294,3.54 50.295,3.55L50.295,8.01C50.295,8.284 50.069,8.51 49.795,8.51L47.645,8.51C47.371,8.51 47.145,8.284 47.145,8.01L47.145,0.51C47.145,0.236 47.371,0.01 47.645,0.01L49.935,0.01C50.185,0.026 50.423,0.12 50.615,0.28L56.205,3.9C56.414,4.05 56.696,4.05 56.905,3.9L62.5,0.28C62.69,0.122 62.924,0.028 63.17,0.01L65.46,0.01C65.734,0.01 65.96,0.236 65.96,0.51L65.96,8.01C65.96,8.284 65.734,8.51 65.46,8.51L63.32,8.51C63.046,8.51 62.82,8.284 62.82,8.01L62.82,3.55C62.82,3.27 62.63,3.17 62.39,3.32L58.305,5.9L58.315,5.91Z"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M28.645,8.47L25.875,8.47C25.873,8.47 25.871,8.47 25.869,8.47C25.74,8.47 25.633,8.366 25.63,8.237C25.629,8.185 25.645,8.134 25.675,8.092L31.675,0.342C31.802,0.157 32.003,0.037 32.225,0.012L45.045,0.012C45.356,0.021 45.607,0.28 45.607,0.592C45.607,0.598 45.607,0.605 45.607,0.612L45.607,8.012C45.607,8.286 45.381,8.512 45.107,8.512L42.967,8.512C42.693,8.512 42.467,8.286 42.467,8.012L42.467,6.91C42.467,6.61 42.467,6.5 42.137,6.5L30.865,6.5C30.657,6.527 30.472,6.649 30.365,6.83L29.475,8.01C29.295,8.282 29.008,8.464 28.685,8.51L28.645,8.47ZM34.205,2.14C34.059,2.157 33.927,2.237 33.845,2.36L32.525,4.07C32.425,4.19 32.525,4.29 32.635,4.29L42.175,4.29C42.475,4.29 42.505,4.17 42.505,3.88L42.505,2.7C42.505,2.29 42.505,2.14 42.175,2.14L34.205,2.14Z"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M23.235,8.47C23.558,8.424 23.845,8.242 24.025,7.97L29.785,0.51C29.995,0.23 29.895,0.01 29.615,0.01L28.465,0.01C28.241,0.037 28.039,0.162 27.915,0.35L21.915,8.1C21.886,8.141 21.87,8.19 21.87,8.24C21.87,8.372 21.978,8.48 22.11,8.48C22.112,8.48 22.113,8.48 22.115,8.48L23.235,8.47Z"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M19.835,8.47C20.158,8.439 20.453,8.272 20.645,8.01L26.405,0.55C26.615,0.27 26.515,0.05 26.245,0.05L24.605,0.05C24.381,0.077 24.179,0.202 24.055,0.39L18.055,8.14C18.026,8.181 18.01,8.23 18.01,8.28C18.01,8.412 18.118,8.52 18.25,8.52C18.252,8.52 18.253,8.52 18.255,8.52L19.835,8.47Z"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M13.875,8.47C13.873,8.47 13.871,8.47 13.869,8.47C13.74,8.47 13.633,8.366 13.63,8.237C13.629,8.185 13.645,8.134 13.675,8.092L19.675,0.342C19.799,0.154 20.001,0.029 20.225,0.002L22.645,0.002C22.925,0.002 23.025,0.232 22.805,0.502L17.015,8.012C16.835,8.284 16.548,8.466 16.225,8.512L13.875,8.47Z"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M8.865,8.47C8.863,8.47 8.861,8.47 8.859,8.47C8.73,8.47 8.623,8.366 8.62,8.237C8.619,8.185 8.635,8.134 8.665,8.092L14.665,0.342C14.789,0.154 14.991,0.029 15.215,0.002L18.415,0.002C18.695,0.002 18.795,0.232 18.585,0.502L12.805,8.012C12.625,8.284 12.338,8.466 12.015,8.512L8.865,8.47Z"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M0.245,8.47C0.243,8.47 0.241,8.47 0.239,8.47C0.11,8.47 0.003,8.366 0,8.237C-0.001,8.184 0.014,8.133 0.045,8.09L6.045,0.34C6.171,0.15 6.374,0.026 6.6,0L13.6,0C13.88,0 13.98,0.23 13.76,0.5L8.005,8.01C7.826,8.283 7.538,8.465 7.215,8.51L0.245,8.47Z"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M25.645,13.4L26.365,13.4C26.601,13.383 26.839,13.383 27.075,13.4C27.436,13.449 27.764,13.64 27.985,13.93C28.495,14.654 28.495,15.626 27.985,16.35C27.743,16.66 27.378,16.849 26.985,16.87C26.742,16.884 26.498,16.884 26.255,16.87L25.645,16.87L25.645,13.4ZM26.195,16.47L26.485,16.47C26.651,16.483 26.819,16.483 26.985,16.47C27.239,16.437 27.463,16.289 27.595,16.07C27.749,15.803 27.825,15.498 27.815,15.19C27.826,14.879 27.743,14.572 27.575,14.31C27.436,14.101 27.214,13.963 26.965,13.93C26.765,13.915 26.565,13.915 26.365,13.93L26.215,13.93L26.195,16.47Z"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M29.105,13.4L29.865,13.4C30.088,13.386 30.312,13.386 30.535,13.4C30.801,13.426 31.047,13.551 31.225,13.75C31.374,13.94 31.455,14.175 31.455,14.417C31.455,14.858 31.185,15.257 30.775,15.42L31.645,16.94L31,16.94L30.19,15.51L29.65,15.51L29.65,16.94L29.1,16.94L29.105,13.4ZM29.645,15.01L29.895,15.01C30.111,15.019 30.326,14.995 30.535,14.94C30.649,14.902 30.745,14.824 30.805,14.72C30.86,14.623 30.888,14.512 30.885,14.4C30.904,14.194 30.792,13.998 30.605,13.91C30.485,13.859 30.356,13.832 30.225,13.83L29.645,13.83L29.645,15.01Z"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><rect x="32.505"y="13.4"width="0.55"height="3.54"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M33.765,13.4L34.355,13.4L35.275,16.32L36.195,13.4L36.775,13.4L35.545,16.96L34.975,16.96L33.765,13.4Z"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><rect x="37.495"y="13.4"width="0.55"height="3.54"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M39.255,13.4L39.845,13.4L41.405,16.11L41.405,13.4L41.925,13.4L41.925,16.95L41.355,16.95L39.775,14.25L39.775,16.95L39.255,16.95L39.255,13.4Z"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M44.365,15.15L45.545,15.15L45.545,16.62C45.183,16.877 44.749,17.014 44.305,17.01C43.889,17.028 43.485,16.868 43.195,16.57C43.034,16.403 42.915,16.201 42.845,15.98C42.762,15.718 42.722,15.445 42.725,15.17C42.691,14.655 42.864,14.147 43.205,13.76C43.663,13.309 44.362,13.2 44.935,13.49C45.293,13.694 45.512,14.078 45.505,14.49L45.015,14.49C44.988,14.107 44.652,13.814 44.269,13.84C44.01,13.826 43.76,13.938 43.599,14.14C43.383,14.446 43.278,14.816 43.299,15.19C43.277,15.568 43.386,15.943 43.609,16.25C43.782,16.455 44.042,16.566 44.309,16.55C44.582,16.549 44.85,16.469 45.079,16.32L45.079,15.6L44.359,15.6L44.365,15.15Z"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M48.285,13.4L49,13.4C49.336,13.384 49.673,13.418 50,13.5C50.213,13.567 50.392,13.714 50.5,13.91C50.596,14.088 50.644,14.288 50.64,14.49C50.655,14.773 50.55,15.049 50.35,15.25C50.146,15.432 49.883,15.535 49.61,15.54L48.83,15.54L48.83,16.92L48.28,16.92L48.285,13.4ZM48.835,15.09L49.065,15.09C49.28,15.099 49.494,15.082 49.705,15.04C49.829,15.006 49.934,14.923 49.995,14.81C50.05,14.712 50.077,14.602 50.075,14.49C50.101,14.265 49.98,14.047 49.775,13.95C49.546,13.878 49.305,13.847 49.065,13.86L48.835,13.86L48.835,15.09Z"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M51.965,14.87L53.385,14.87L53.385,15.34L51.965,15.34L51.965,16.47L53.565,16.47L53.565,16.94L51.415,16.94L51.415,13.4L53.515,13.4L53.515,13.87L51.965,13.87L51.965,14.87Z"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M54.515,13.4L55.275,13.4C55.498,13.386 55.722,13.386 55.945,13.4C56.211,13.426 56.457,13.551 56.635,13.75C56.784,13.94 56.865,14.175 56.865,14.417C56.865,14.858 56.595,15.257 56.185,15.42L57.055,16.94L56.405,16.94L55.645,15.52L55.1,15.52L55.1,16.95L54.55,16.95L54.515,13.4ZM55.065,15.04L55.315,15.04C55.531,15.049 55.746,15.025 55.955,14.97C56.069,14.932 56.165,14.854 56.225,14.75C56.28,14.653 56.308,14.542 56.305,14.43C56.324,14.224 56.212,14.028 56.025,13.94C55.905,13.889 55.776,13.862 55.645,13.86L55.075,13.86L55.065,15.04Z"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M58.515,14.87L59.935,14.87L59.935,15.34L58.515,15.34L58.515,16.94L57.965,16.94L57.965,13.4L60.065,13.4L60.065,13.87L58.515,13.87L58.515,14.87Z"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M62.185,13.33C62.583,13.323 62.966,13.487 63.235,13.78C63.867,14.596 63.867,15.744 63.235,16.56C62.681,17.139 61.75,17.159 61.171,16.606C61.155,16.591 61.14,16.576 61.125,16.56C60.787,16.167 60.615,15.657 60.645,15.14C60.647,14.875 60.691,14.612 60.775,14.36C60.879,14.02 61.103,13.728 61.405,13.54C61.64,13.397 61.91,13.324 62.185,13.33ZM62.185,13.8C61.915,13.788 61.657,13.917 61.505,14.14C61.31,14.436 61.212,14.786 61.225,15.14C61.217,15.494 61.314,15.842 61.505,16.14C61.663,16.354 61.914,16.48 62.18,16.48C62.36,16.48 62.535,16.422 62.68,16.315C62.747,16.266 62.806,16.207 62.855,16.14C63.048,15.843 63.146,15.494 63.135,15.14C63.148,14.786 63.05,14.436 62.855,14.14C62.701,13.925 62.449,13.801 62.185,13.81L62.185,13.8Z"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M64.645,13.4L65.405,13.4C65.628,13.386 65.852,13.386 66.075,13.4C66.341,13.426 66.587,13.551 66.765,13.75C66.914,13.94 66.995,14.175 66.995,14.417C66.995,14.858 66.725,15.257 66.315,15.42L67.185,16.94L66.535,16.94L65.725,15.51L65.175,15.51L65.175,16.94L64.645,16.94L64.645,13.4ZM65.195,15.04L65.445,15.04C65.661,15.049 65.876,15.025 66.085,14.97C66.199,14.932 66.295,14.854 66.355,14.75C66.41,14.653 66.438,14.542 66.435,14.43C66.454,14.224 66.342,14.028 66.155,13.94C66.035,13.889 65.906,13.862 65.775,13.86L65.205,13.86L65.195,15.04Z"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M68.105,13.4L68.895,13.4L69.775,16.4L70.655,13.4L71.435,13.4L71.435,16.95L70.935,16.95L70.935,14.01L70.055,16.95L69.5,16.95L68.65,14.01L68.65,16.95L68.15,16.95L68.105,13.4Z"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M73.435,13.39L73.965,13.39L75.175,16.95L74.645,16.95L74.385,16.12L73.1,16.12L72.83,16.95L72.27,16.95L73.435,13.39ZM74.205,15.64L73.705,14.05L73.205,15.64L74.205,15.64Z"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M75.975,13.4L76.565,13.4L78.125,16.11L78.125,13.4L78.645,13.4L78.645,16.95L78.075,16.95L76.495,14.25L76.495,16.95L75.975,16.95L75.975,13.4Z"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M82.275,14.47L81.785,14.47C81.764,14.09 81.436,13.793 81.055,13.81C80.787,13.803 80.533,13.936 80.385,14.16C80.196,14.458 80.101,14.807 80.115,15.16C80.102,15.514 80.2,15.864 80.395,16.16C80.545,16.374 80.794,16.498 81.055,16.49C81.508,16.49 81.761,16.207 81.815,15.64L82.315,15.64C82.307,15.913 82.235,16.18 82.105,16.42C81.899,16.773 81.514,16.985 81.105,16.97C80.71,16.98 80.329,16.824 80.055,16.54C79.391,15.691 79.417,14.481 80.115,13.66C80.386,13.409 80.746,13.276 81.115,13.29C81.338,13.288 81.559,13.343 81.755,13.45C82.097,13.673 82.295,14.062 82.275,14.47Z"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g><g transform="matrix(1.58705,0,0,1.58705,7.53074,1.11468)"><path d="M83.725,14.87L85.145,14.87L85.145,15.34L83.725,15.34L83.725,16.47L85.325,16.47L85.325,16.94L83.175,16.94L83.175,13.4L85.275,13.4L85.275,13.87L83.725,13.87L83.725,14.87Z"style="fill:rgb(255,255,255);fill-rule:nonzero;"/></g></g></svg>1Height：設定控制元件的高度，設定為60。Width：設定控制元件的寬度，設定為280。
UgContainerPanel02屬性設定
此控制元件為容器控制元件，用於放置3、4、6控制元件。
Layout：設定子控制元件的佈局的方式，設定為hbox。LayoutConfig：設定佈局的相關設定，其中Flex設定為6，Width設定為100%。
3：UgContainerPanel04屬性設定
LayoutConfig：設定佈局的相關設定，其中Flex設定為1，Height設定為100%。
4：UgContainerPanel05屬性設定
Layout：設定子控制元件的佈局的方式，設定為fit。LayoutConfig：設定佈局的相關設定，其中Flex設定為8，Height設定為100%。
5：Ug3DView02屬性設定
Ug3DView02放置於UgContainerPanel05中。6：UgContainerPanel06屬性設定
LayoutConfig：*LayoutConfig：設定佈局的相關設定，其中Flex設定為1，Height設定為100%。
7：UgContainerPanel03屬性設定
LayoutConfig：設定控制元件的佈局設定，其中的Flex設定為2，Width設定為100%。
8：UgLabel01屬性設定

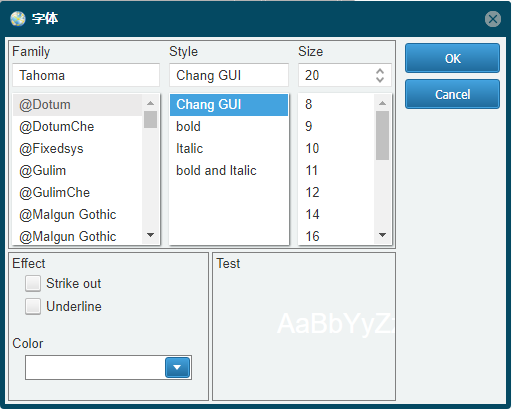

Caption：設定顯示的文字內容，設定為任時光荏苒,唯傳奇永恒。Font：設定顯示的文字字型，點選右側的[√]打開字型設定對話方塊，在其中設定字型樣式，設定的結果如下。
# 3. 程式設計
點選程式設計界面右下角的按鈕，切換至單元選擇界面，勾選需要使用的單元。該程式的程式無需引用單元。
# 3.1. 程式初始設定
該程式程式初始設定3D展示的選項，設定完成後即可顯示。
//JScript
function ViewInit()
{
//設定圖片序列的地址
Ug3DView02.Options.data_folder = "library/js/js-cloudimage-360-view/demo/iris/";
//設定圖片序列的名稱，包含命名規則{index}
Ug3DView02.Options.data_filename = "iris-{index}.jpeg";
//設定圖片序列的數量
Ug3DView02.Options.data_amount = 36;
//設定是否啟用自動播放功能
Ug3DView02.Options.data_autoplay = True;
//設定是否顯示底部的全景環
Ug3DView02.Options.data_bottom_circle = True;
//設定顯示的放大倍率
Ug3DView02.Options.data_magnifier = 3;
//設定是否顯示全屏提示
Ug3DView02.Options.data_full_screen = True;
Ug3DView02.Init;
}
function UgWebRunFrameOnAfterRunScript(sender)
{
UGMM.LC(Self);
}
{
ViewInit();
Self.OnAfterRunScript = &UgWebRunFrameOnAfterRunScript;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
//PasScript
Procedure ViewInit;
Begin
//設定圖片序列的地址
Ug3DView02.Options.data_folder := 'library/js/js-cloudimage-360-view/demo/iris/';
//設定圖片序列的名稱，包含命名規則{index}
Ug3DView02.Options.data_filename := 'iris-{index}.jpeg';
//設定圖片序列的數量
Ug3DView02.Options.data_amount := 36;
//設定是否啟用自動播放功能
Ug3DView02.Options.data_autoplay := True;
//設定是否顯示底部的全景環
Ug3DView02.Options.data_bottom_circle := True;
//設定顯示的放大倍率
Ug3DView02.Options.data_magnifier := 3;
//設定是否顯示全屏提示
Ug3DView02.Options.data_full_screen := True;
Ug3DView02.Init;
End;
procedure UgWebRunFrameOnAfterRunScript(const sender: tobject);
begin
UGMM.LC(Self);
end;
Begin
ViewInit;
End.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
// Make sure to add code blocks to your code group

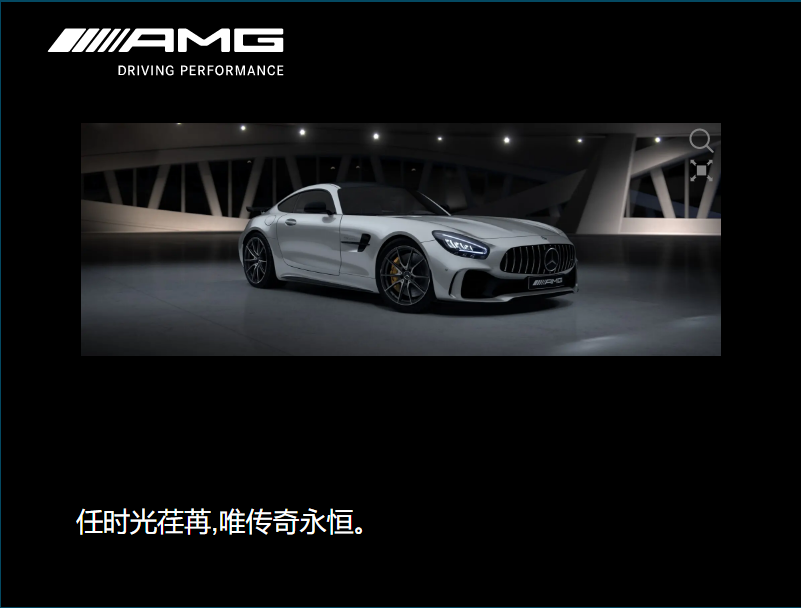

# 4. 運行結果
使用滑鼠在FastWeb功能表，點選[儲存至資料庫]按鈕，將其儲存至資料庫，點選[除錯運行]確認能夠正常打開。
圖示會自動旋轉，點選圖示可停止，在界面中顯示。
